| Brand Name : | YaTo |
| Model Number : | WJ-10FB |
| Certification : | MA |
| Price : | USD350000~USD450000 |
| Supply Ability : | 1000Set Per Year |
| Delivery Time : | 30-60 Days |
★The multi-functional loader series includes WJ-15FB, WJ-10FB, WJ-7FB,WJ-4FB has a total of 4 models；
★The five working modes of shovel fork, bucket, coiling belt, trailer, and crushing hammer can be quickly converted, making it possible to use multiple vehicles；
★Adopting self-developed explosion-proof diesel engine, with high output torque and high reliability；
★The transmission system adopts Torque converter and power shift transmission of DANA Company, which are easy to operate and stable；
★Small body size, flexible and lightweight movements, wide working range, and strong practicality；

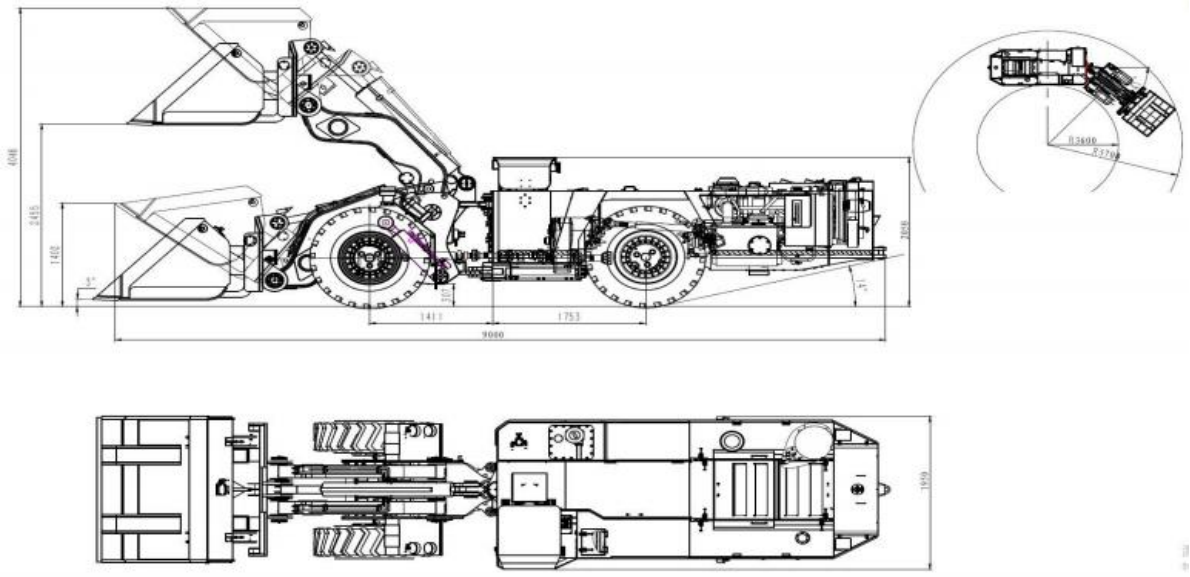

Product Sketch
Parameters
| Items | Parameter Value |
| Body Dimension(L×W×H)(mm) | 8900*2350*2210 |
| Rated Loading Capacity(kg) | 10000 |
| Vehicle Weight(kg) | 22620 |
| Max Traveling Speed (No load)(km/h) | 20 |
| Climbing Capacity ( ° ) | 14 |
| Driving Method | 4×4 Full Wheel Drive |
| Braking Method | Wet Style Braker Spring Braking, Hydraulic Releasing |
| Rotating Radius(Int/Ext)(mm) | 3500/6200 |
| Min Ground Clearance(mm) | 365 |
| Rated Power(KW) | 200KW@2000RPM |
| Model of Anti-Explosive Diesel Engine | TDE6116DZLQFB2 |
| Braking Distance(mm) | ≤8 |
| Wheelbase(mm) | 3200 |
| Starting Method | Pneumatic Start |
| Temperature (℃) | -20~40 |
|
|
