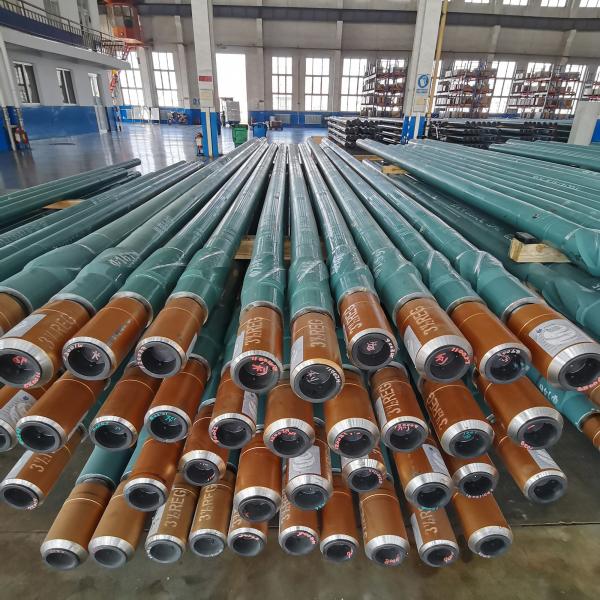

Conventional Down Hole Motor Oilfield Mud Motors

Ask Lasest Price
Supply Ability :	30000PCs per Year
Delivery Time :	5-15work days
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	T/T

Add to Cart

Product Details
Company Profile

Conventional Down Hole Motor Oilfield Mud Motors

Compare to the even wall downhole motors the conventional downhole motors are widely used in oil and gas well drilling because of the big cost advantages. In oil and gas well drilling operations the reliability is more important than any other factors. We provide most reliable downhole motors to customers to help them saving as much drilling cost as possible.

To fit different bore hole environment we provide different power sections as follow:

- Clean Water Base Mud Power Sections

- Salty Water Base Mud Power Sections

- Oil Base Mud Power Sections

- High Temperature Power Sections

- Hard Rubber Power Sections

Besides we also accept custom making orders as per customers’ detailed technical requirements.

Availability of Conventional Downhole Motors:

Downhole Motor Specification	OD		Bit Size		Connection		Lobe	Stage	Flow Rate		RPM	Working Pressure Drop		Output Toque		Max Pressure Drop		Max Toque		Operating WOB		Max WOB		Output Power
Downhole Motor Specification	mm	In	mm	In	Top	Bottom	Lobe	Stage	Lpm	Gpm	RPM	MPa	Psi	N.m	lb-ft	MPa	Psi	N.m	lb-ft	kN	lb	kN	lb	KW	HP
4LZ95x7.0-5.7-450	95	3-3/4	118~149	4-5/8~5-7/8	2-7/8REG	2-7/8REG	4:5	5.7	230~450	61~119	144~281	6	827	1162	858	7	993	1627	1201	25	5620	50	11240	34	47
5LZ95x7.0-3-600	95	3-3/4	118~149	4-5/8~5-7/8	2-7/8REG	2-7/8REG	5:6	3.0	230~450	61~119	94~184	3	435	936	691	4	523	1310	967	25	5620	50	11240	18	24
5LZ95x7.0-4.3-600	95	3-3/4	118~149	4-5/8~5-7/8	2-7/8REG	2-7/8REG	5:6	4.3	300~600	79~159	122~245	4	624	1342	991	5	749	1879	1387	25	5620	50	11240	34	47
7LZ95x7.0-3-600	95	3-3/4	118~149	4-5/8~5-7/8	2-7/8REG	2-7/8REG	7:8	3.0	300~720	79~190	103~248	3	435	1108	818	4	523	1551	1145	25	5620	50	11240	29	39
7LZ95x7.0-4.3-600	95	3-3/4	118~149	4-5/8~5-7/8	2-7/8REG	2-7/8REG	7:8	4.3	300~720	79~190	103~248	4	624	1588	1172	5	749	2223	1641	25	5620	50	11240	41	56
7LZ95x7.0-6-600	95	3-3/4	118~149	4-5/8~5-7/8	2-7/8REG	2-7/8REG	7:8	6.0	300~720	79~190	103~248	6	871	2216	1636	7	1045	3102	2290	25	5620	50	11240	58	78
4LZ120x7.0-4.7-650	120	4-3/4	149~200	5-7/8~7-7/8	3-1/2REG	3-1/2REG	4:5	4.7	500~1000	132~265	126~252	5	682	2376	1754	6	819	3326	2455	30	6744	60	13488	63	85
5LZ120x7.0-4-720	120	4-3/4	149~200	5-7/8~7-7/8	3-1/2REG	3-1/2REG	5:6	4.0	600~1200	159~317	127~254	4	581	2404	1774	5	697	3366	2484	30	6744	60	13488	64	87
5LZ120x7.0-5-720	120	4-3/4	149~200	5-7/8~7-7/8	3-1/2REG	3-1/2REG	5:6	5.0	600~1200	159~317	127~254	5	726	3005	2218	6	871	4207	3105	30	6744	60	13488	80	109
7LZ120x7.0-4-752	120	4-3/4	149~200	5-7/8~7-7/8	3-1/2REG	3-1/2REG	7:8	4.0	600~1200	159~317	101~202	4	581	3031	2237	5	697	4243	3132	30	6744	60	13488	64	87
2LZ127x7.0-7-540	127	5	149~200	5-7/8~7-7/8	3-1/2REG	3-1/2REG	2:3	7.0	700~1400	185~370	298~596	7	1016	2096	1547	8	1219	2934	2166	30	6744	60	13488	131	178
7LZ127x7.0-3.5-1080	127	5	149~200	5-7/8~7-7/8	3-1/2REG	3-1/2REG	7:8	3.5	700~1400	185~370	69~138	4	508	4524	3339	4	610	6334	4675	30	6744	60	13488	65	89
7LZ127x7.0-2.7-1120	127	5	149~200	5-7/8~7-7/8	3-1/2REG	3-1/2REG	7:8	2.7	700~1400	185~370	79~158	3	392	3046	2248	3	470	4264	3148	30	6744	60	13488	50	69
7LZ127x7.0-3.3-1120	127	5	149~200	5-7/8~7-7/8	3-1/2REG	3-1/2REG	7:8	3.3	700~1400	185~370	79~158	3	479	3723	2748	4	575	5212	3847	30	6744	60	13488	62	84
4LZ165x7.0-6.6-760	165	6-1/2	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	4:5	6.6	840~1680	222~444	102~203	7	958	6950	5130	8	1150	9730	7182	100	22480	160	35200	148	201
5LZ165x7.0-5-820	165	6-1/2	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	5:6	5.0	1200~2300	317~608	117~224	5	726	6551	4835	6	871	9171	6769	100	22480	160	35200	153	208
5LZ165x7.0-6-820	165	6-1/2	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	5:6	6.0	1200~2300	317~608	117~224	6	871	7861	5802	7	1045	11005	8123	100	22480	160	35200	184	250
5LZ165x7.0-7-820	165	6-1/2	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	5:6	7.0	1200~2300	317~608	117~224	7	1016	9172	6770	8	1219	12841	9478	100	22480	160	35200	215	292
7LZ165x7.0-3.2-1600	165	6-1/2	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	7:8	3.2	1200~2300	317~608	44~85	3	464	11001	8120	4	557	15401	11368	100	22480	160	35200	98	133
7LZ165x7.0-4.7-1080	165	6-1/2	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	7:8	4.7	1200~2300	317~608	77~147	6	798	9342	6895	7	958	13079	9653	100	22480	160	35200	144	196
7LZ165x7.0-4.8-900	165	6-1/2	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	7:8	4.8	1200~2300	317~608	92~177	5	697	7952	5869	6	836	11133	8217	100	22480	160	35200	147	200
7LZ165x7.0-5-1040	165	6-1/2	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	7:8	5	1200~2300	317~608	68~131	5	726	11173	8247	6	871	15642	11545	100	22480	160	35200	153	208
7LZ165x7.0-5.6-900	165	6-1/2	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	7:8	5.6	1200~2300	317~608	92~177	6	813	9277	6847	7	975	12988	9586	100	22480	160	35200	172	234
7LZ165x7.0-6.3-900	165	6-1/2	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	7:8	6.3	1200~2300	317~608	92~177	6	914	10436	7703	8	1097	14610	10784	100	22480	160	35200	193	263
7LZ172x7.0-3.2-1600	172	6-3/4	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	7:8	3.2	1200~2300	317~608	85~44	3	464	11001	8120	4	557	15401	11368	100	22480	160	35200	98	133
7LZ172x7.0-4.7-1080	172	6-3/4	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	7:8	4.7	1200~2300	317~608	147~77	6	798	9342	6895	7	958	13079	9653	100	22480	160	35200	144	196
7LZ172x7.0-4.8-900	172	6-3/4	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	7:8	4.8	1200~2300	317~608	177~92	5	697	7952	5869	6	836	11133	8217	100	22480	160	35200	147	200
7LZ172x7.0-5-1040	172	6-3/4	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	7:8	5.0	1200~2300	317~608	131~68	5	726	11173	8247	6	871	15642	11545	100	22480	160	35200	153	208
7LZ172x7.0-5.6-900	172	6-3/4	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	7:8	5.6	1200~2300	317~608	177~92	6	813	9277	6847	7	975	12988	9586	100	22480	160	35200	172	234
7LZ172x7.0-6.3-900	172	6-3/4	213~251	8-3/8~9-7/8	4-1/2REG	4-1/2REG	7:8	6.3	1200~2300	317~608	177~92	6	914	10436	7703	8	1097	14610	10784	100	22480	160	35200	193	263
5LZ185x7.0-5.6-900	185	7-1/4	222~251	8-3/4~9-7/8	4-1/2IF	6-5/8REG	5:6	5.6	1200~2300	317~608	94~180	6	813	12768	9424	7	975	12768	9424	140	31473	170	37400	172	234
7LZ185x7.0-5-1040	185	7-1/4	222~251	8-3/4~9-7/8	4-1/2IF	6-5/8REG	7:8	5.0	1200~2300	317~608	68~131	5	726	15642	11545	6	871	15642	11545	140	31473	170	37400	153	208
7LZ185x7.0-3.2-1600	185	7-1/4	222~251	8-3/4~9-7/8	4-1/2IF	6-5/8REG	7:8	3.2	1200~2300	317~608	44~85	3	464	15401	11368	4	557	15401	11368	140	31473	170	37400	98	133
5LZ197x7.0-5.6-900	197	7-3/4	251~311	9-7/8~12-1/4	6-5/8REG	6-5/8REG	5:6	5.6	1700~3500	450~926	120~246	6	813	10132	7478	7	975	14185	10470	160	35970	250	56200	261	355
6LZ197x7.0-4.8-1050	197	7-3/4	251~311	9-7/8~12-1/4	6-5/8REG	6-5/8REG	6:7	4.8	1800~3600	476~952	87~174	5	697	12676	9356	6	836	17746	13099	160	35970	250	56200	230	313
4LZ203x7.0-5.6-900	203	8	251~311	9-7/8~12-1/4	6-5/8REG	6-5/8REG	4:5	5.6	1400~2700	370~714	99~190	6	813	10118	7468	7	975	14165	10455	160	35970	250	56200	202	274
5LZ203x7.0-5.6-900	203	8	251~311	9-7/8~12-1/4	6-5/8REG	6-5/8REG	5:6	5.6	1800~3600	476~952	110~220	6	813	11673	8616	7	975	16342	12062	160	35970	250	56200	269	366
6LZ203x7.0-4.8-1050	203	8	251~311	9-7/8~12-1/4	6-5/8REG	6-5/8REG	6:7	4.8	1800~3600	476~952	83~167	5	697	13195	9739	6	836	18473	13635	160	35970	250	56200	230	313
7LZ203x7.0-4.2-1200	203	8	251~311	9-7/8~12-1/4	6-5/8REG	6-5/8REG	7:8	4.2	2100~4200	556~1111	77~154	4	610	14583	10764	5	732	20416	15069	160	35970	250	56200	235	320
5LZ216x7.0-5.6-900	216	8-1/2	311~394	12-1/4~15-1/2	6-5/8REG	6-5/8REG	5:6	5.6	1800~3600	476~952	110~220	6	813	11673	8616	7	975	16342	12062	200	44960	300	67440	269	366
5LZ216x7.0-4.2-1200	216	8-1/2	311~394	12-1/4~15-1/2	6-5/8REG	6-5/8REG	5:6	4.2	1520~3300	402~873	102~222	4	610	7936	5858	5	732	11110	8201	200	44960	300	67440	185	251
6LZ216x7.0-4.8-1050	216	8-1/2	311~394	12-1/4~15-1/2	6-5/8REG	6-5/8REG	6:7	4.8	1800~3600	476~952	83~167	5	697	13195	9739	6	836	18473	13635	200	44960	300	67440	230	313
5LZ228x7.0-4.2-1200	228	9	311~394	12-1/4~15-1/2	6-5/8REG	7-5/8REG	5:6	4.2	2280~4500	603~1190	76~151	4	610	15974	11790	5	732	22364	16507	200	44960	300	67440	252	343
6LZ228x7.0-4.8-1050	228	9	311~394	12-1/4~15-1/2	6-5/8REG	7-5/8REG	6:7	4.8	2280~4500	603~1190	80~158	5	697	17431	12866	6	836	24403	18012	200	44960	300	67440	288	392
7LZ228x7.0-4.2-1200	228	9	311~394	12-1/4~15-1/2	6-5/8REG	7-5/8REG	7:8	4.2	2280~4500	603~1190	61~120	4	610	20124	14853	5	732	28174	20795	200	44960	300	67440	252	343
5LZ244x7.0-4.2-1200	244	9-5/8	311~445	12-1/4~17-1/2	6-5/8REG	7-5/8REG	5:6	4.2	2280~4500	603~1190	76~151	4	610	15974	11790	5	732	22364	16507	200	44960	300	67440	252	343
6LZ244x7.0-4.8-1050	244	9-5/8	311~445	12-1/4~17-1/2	6-5/8REG	7-5/8REG	6:7	4.8	2280~4500	603~1190	80~158	5	697	17431	12866	6	836	24403	18012	200	44960	300	67440	288	392
7LZ244x7.0-4.2-1200	244	9-5/8	311~445	12-1/4~17-1/2	6-5/8REG	7-5/8REG	7:8	4.2	2280~4500	603~1190	61~120	4	610	20124	14853	5	732	28174	20795	200	44960	300	67440	252	343
4LZ286x7.0-5-1000	286	11-1/4	375~660	14-3/4~26	7-5/8REG	7-5/8REG	4:5	5.0	2400~4800	635~1270	77~153	5	726	19971	14741	6	871	27959	20637	300	67440	500	112400	320	435
